Regular price $0.00 $120.00 Sale

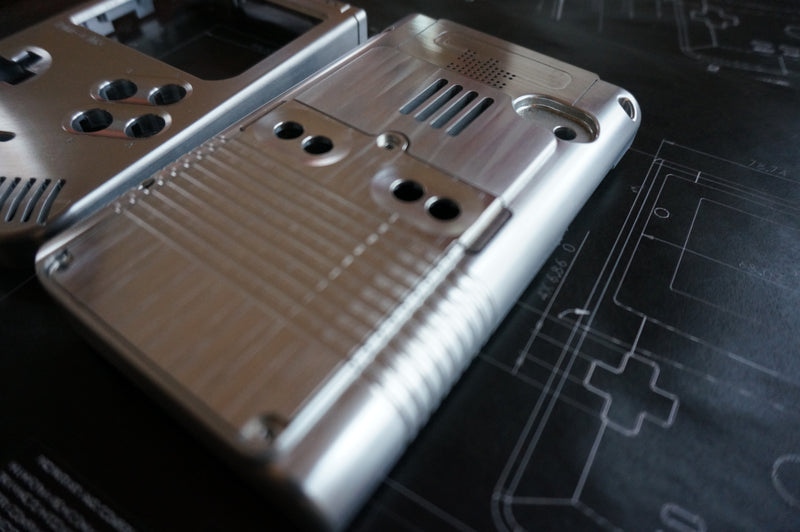

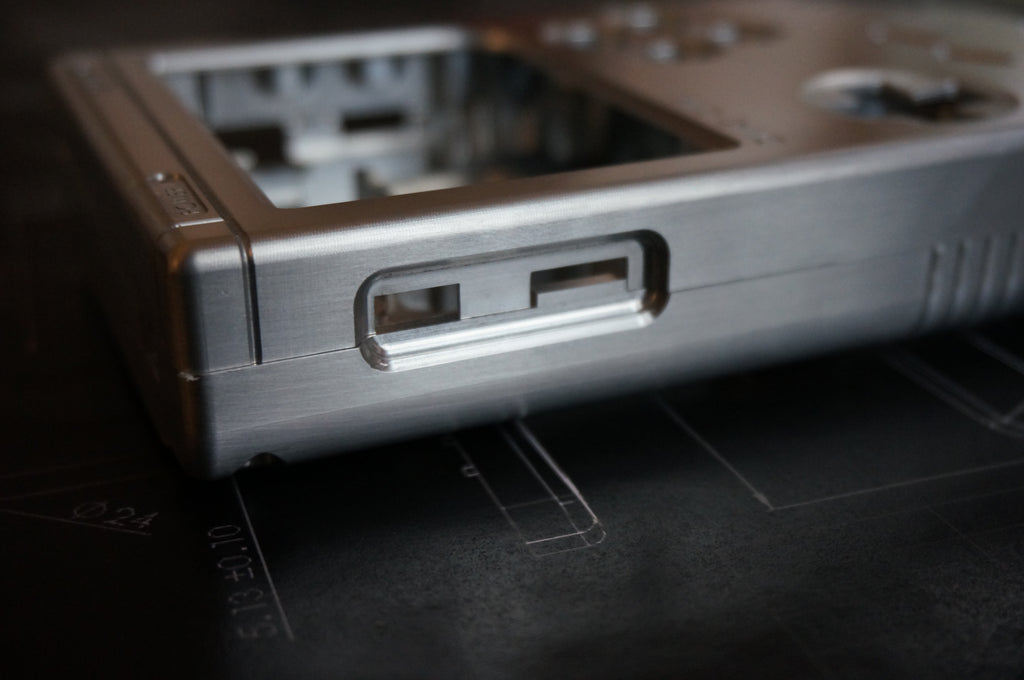

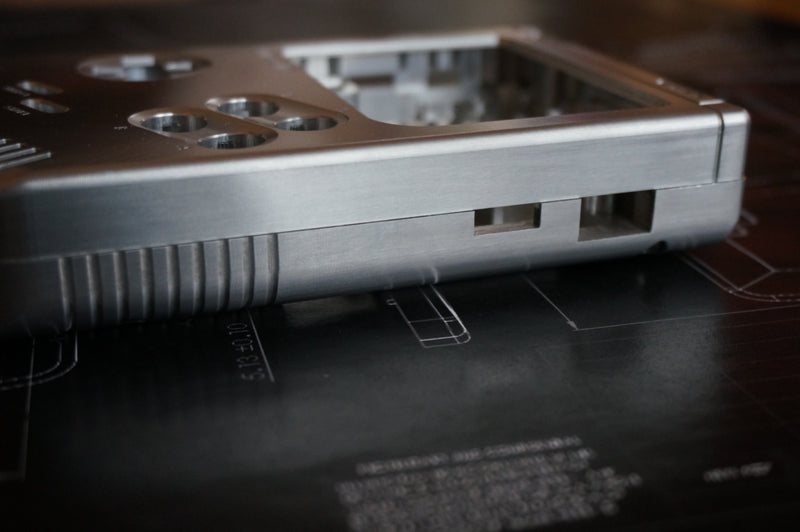

This is a fully CNC machined aluminum housing for the Game Boy DMG with a Raspberry Pi CM3 Module.  This fits Kite's All in one board kit that makes use of the Raspberry Pi CM3 to turn a classic Game Boy into a fully functional handheld gaming computer.  Parts will come clear anodized*

Weight:  0.62 lbs

Main features:

  • Includes machined front housing, machined rear main housing,  machined rear button access panel, and fasteners
  • Rear button panel uses HoolyHoo's 4 button PCB and DS Lite buttons
  • The 3 Kite PCB components will simply drop in and fasten to the rear housing with included fasteners

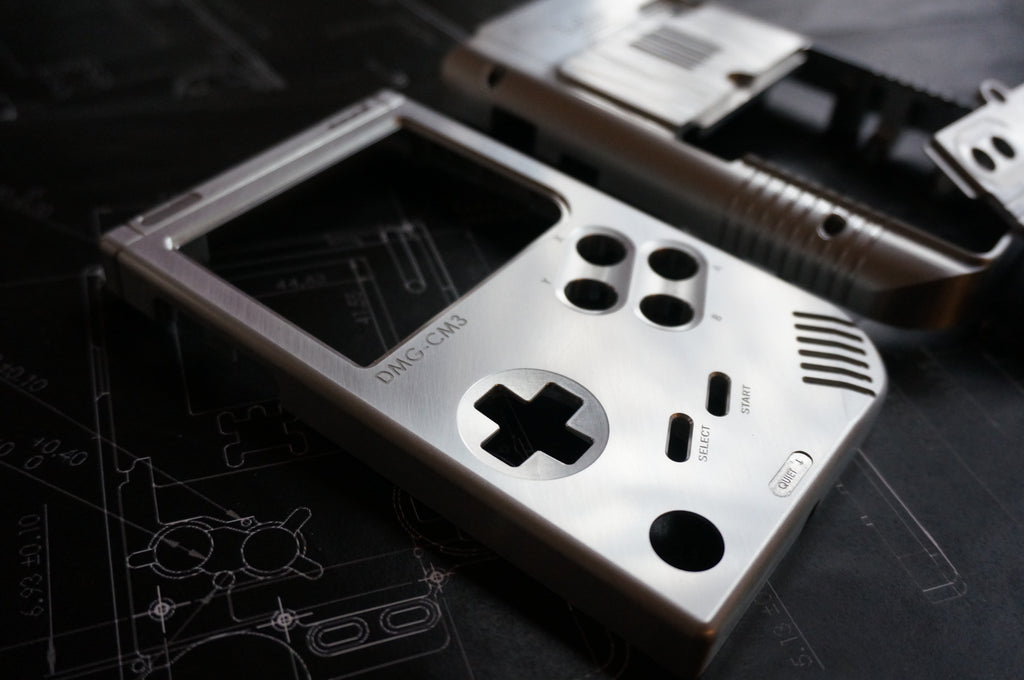

  • Holes in the front are ready for your choice of colors for A, B, X and Y front buttons
  • Large rear access panel allows room to disconnect battery, and room to work
  • Holes pre-drilled for LED's
  • Assembly instructions



Joystick Rev A:

  • Important:  Some versions of the PCB have a black plastic piece that holds the CM3.  If it's black, you will need to simply snap off one side as this gets in the way.  If the piece is white, no modification is needed.
  • This is for the CM3 (NOT CM3+)

No Joystick Rev C:

  • No need to trim the PCB plastic
  • This can fit the CM3 and CM3 plus.  A thermal pad is recommended (optional) for the CM3 if you would like the CM3 to touch the rear housing
  • The joystick hole is removed, however a pilot hole has been drilled if anyone would like to drill it out on their own.



Other parts required:

Kite circuit sword PCB Kit - signup for his mailing list here.

              More Kite info here

Raspberry Pi CM3

4 front DMG buttons and 1 directional keypad

Buttons silicone set

DMG plastic power switch

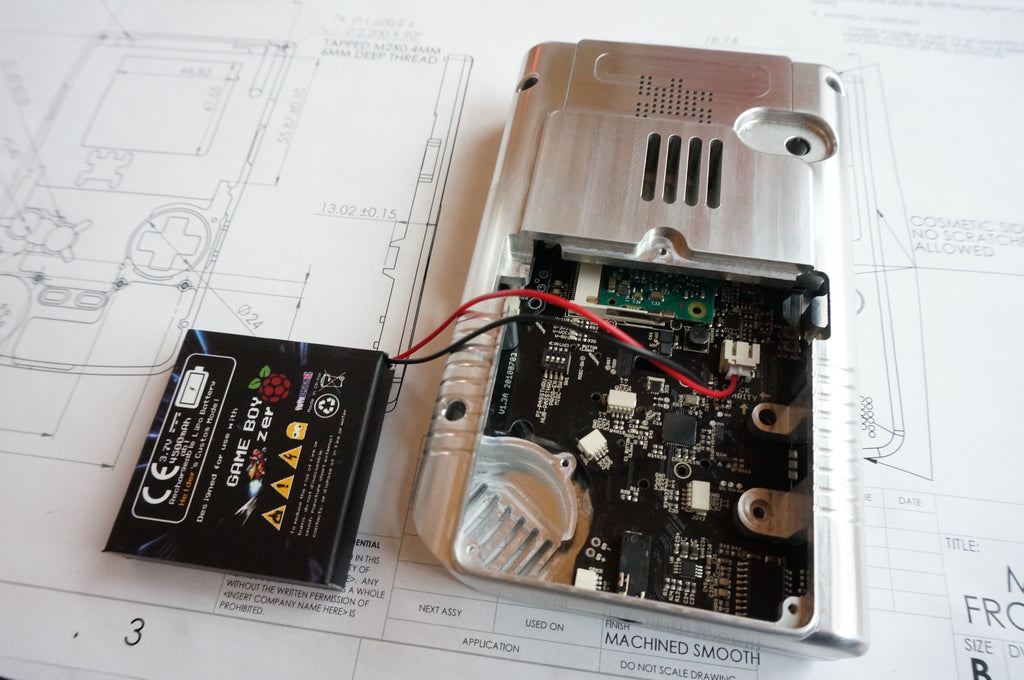

Battery - 56.5x54x12.5mm will fit.  This battery by "Helder" fits well.  Note: A 3d printed part is recommended to keep the battery in place (no longer included)

Front glass

Optional Joystick (Sony PS Vita PCH-2000)

Thermal paste and/or thermal pad

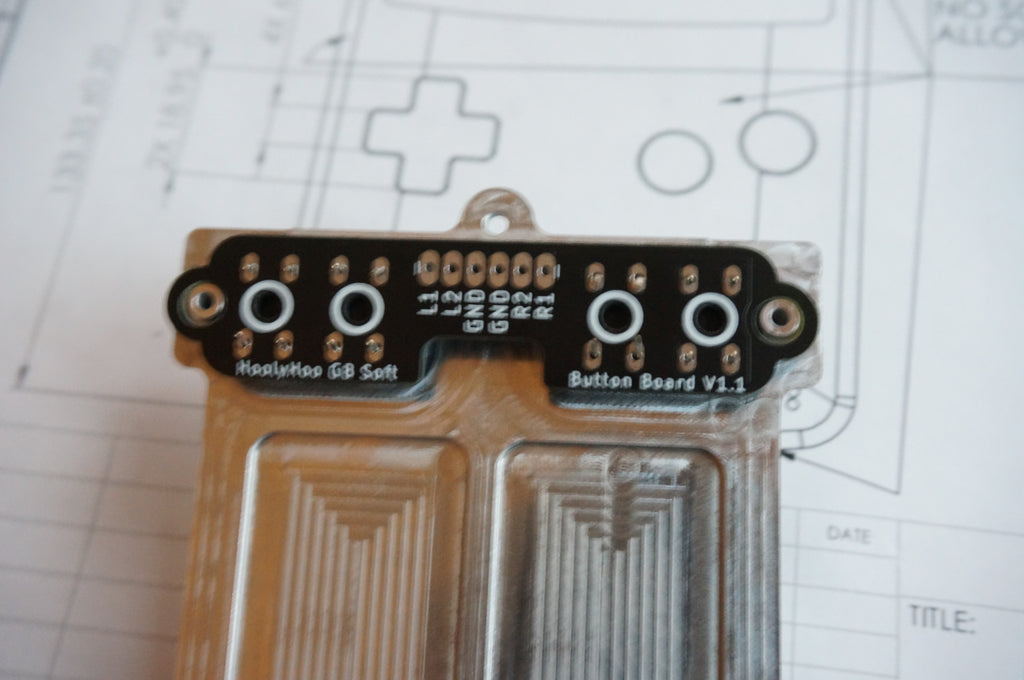

Hoolyhoo rear button PCB -You will use one of the 4 buttons for the MODE switch.  The other 3 buttons in teh Hoolyhoo kit will not be used.

4 rear DS Lite buttons (two X and two Y are recommended).  These are used with the Hoolyhoo PCB.

 If you find a part out of stock, visit our central location for part availability. It shows what colors are on order and also an estimated time to receive parts.  Here are updates on parts:  https://www.boxypixel.com/pages/product-availability

 Notes:

1. These parts are not mass produced, and as such should be considered hand made. Although we strive for perfection, we also need to make parts affordable for all. These can be particularly prominent in black anodized parts. We think this often adds a unique and individual character to the parts, but will offer a refund if you are dissatisfied with the appearance of the piece upon its arrival.

2. Surface finish, texture, and color may vary from batch to batch. We use multiple machine shops and are continuously improving our products’ surface finish. Colors may also look different depending on your screen, the lighting, and also variations in anodizing from batch to batch.

3. The clear anodize is a chemical alteration to the surface that is colorless and helps protect from oxidation, scratches, and finger prints.

4. Please be sure to review our refund policy for cancelled and returned orders.

5. International orders: Import taxes/fees/tariffs are not included. Your country will determine these fees. We do not change the value of the shipment. Please refer to our FAQ page if you have further questions.



FAQ

    Q: Why so expensive?

    • A: I get it, this is extremely expensive, and I can empathize.  It's a very large piece of aluminum (higher material costs) and requires a ton of machining time.

    Q: How heavy is an assembled unit?

    • A: 1 lb for fully built unit, assuming Helder's battery is used (Reference: Stock DMG unit with AA batteries is 0.67 lbs)
