V5 3.0 inch HD Drop In All in One Retro pixel 720x480


Price:
Sale price$58.00

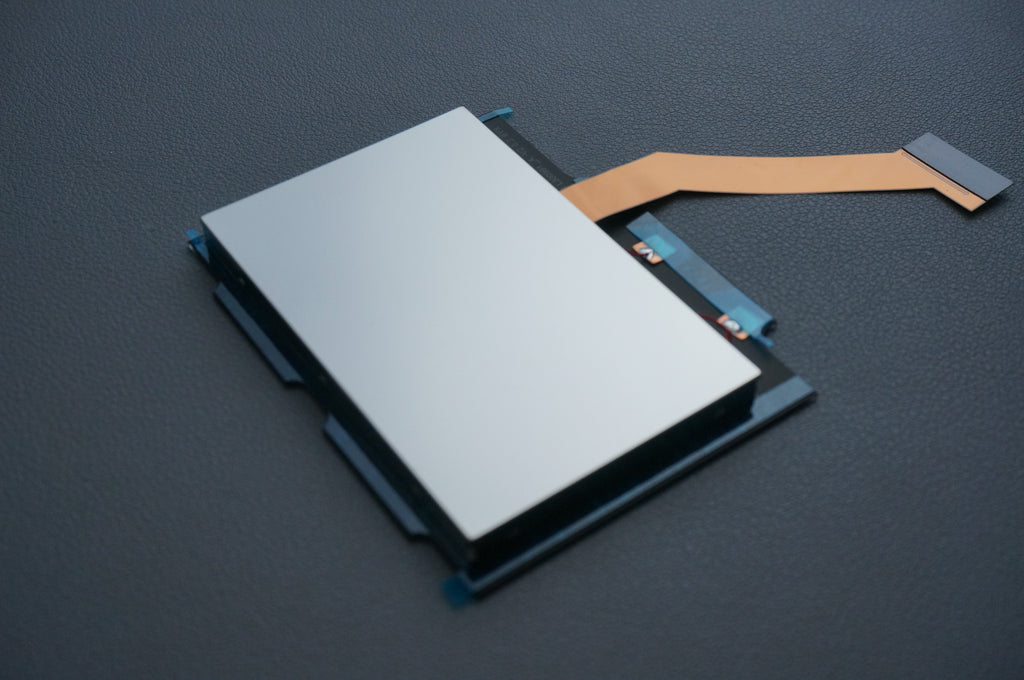

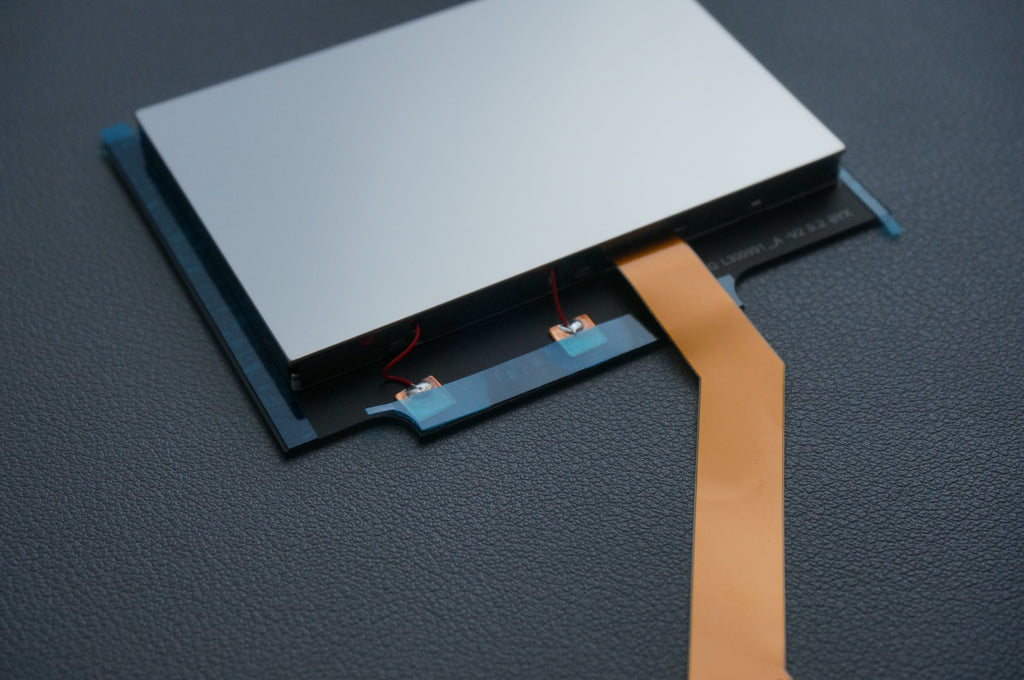

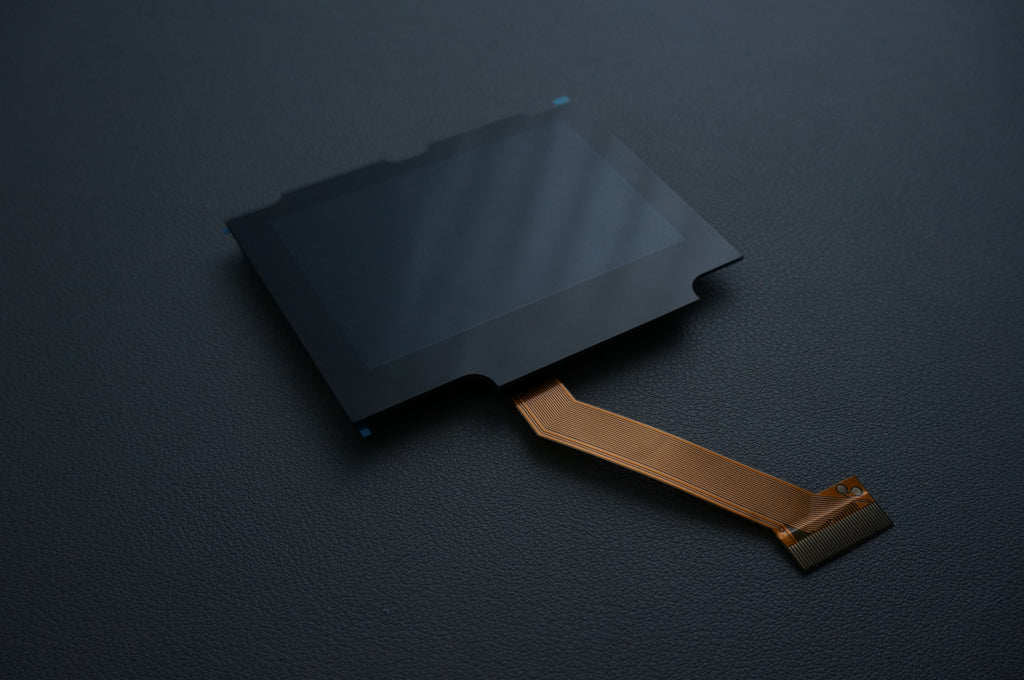

V5 3" 3.0 inch HD Drop In All in 1 Laminated 720*480 Retro Pixel IPS display For GBA SP Console Backlight.  Soldering is optional for brightness control.   This will fit both our metal unhinged or our conventional metal hinged shells.  You may need to move the copper tape touch sensor up toward the LCD.

  • 15 brightness levels
  • Same display size as OEM
  • Pixel effects: Normal, retro pixel, scan line1, scan line 2
  • 8 color modes
  • Touch screen to change brightness and color modes
  • On screen display (OSD) requires soldering one wire from flex to Q128 on your Nintendo PCB


Menu Operation (if wire is soldered):

Short press the 'Brightness' button to change the brightness.

Press the 'Brightness' button 5 seconds to activate the OSD Menu.

Long press the button to select the adjustment item when OSD Menu activated.

Short press the button to adjust the item when OSD Menu activated.



Notes:

1. You must test the screen and flex cable prior to assembly into the housing.  We cannot accept returns after parts are installed.  Simply connect to your Nintendo board, and hold a stock battery in place to test.

 To view all of our USP products

Notes:

  1. These parts are not mass produced and  we use multiple machine shops, so surface finish, texture, and color may vary between batches. Colors may also look different depending on your screen, the lighting, and variations in anodizing.

  2. Please be sure to review our refund policy for cancelled and returned orders.

  3. Please see our FAQ page for information about international orders, import fees, and tariffs. We do not change the value of the shipment and we do not have control over your particular country's fee/tariffs/taxes.

  4. Brass parts come as machined and may show oxidation/discolor and some small machining or small scratches are possible. Assume you will need to do your final surface finishing using a flexible 3M sanding pad.  (The 3M 7448 usually works well).  After polishing, apply clearcoat, poly, or other coating to maintain the shine.
