ゲームボーイアドバンス SP ヒンジなし - V2 シェル

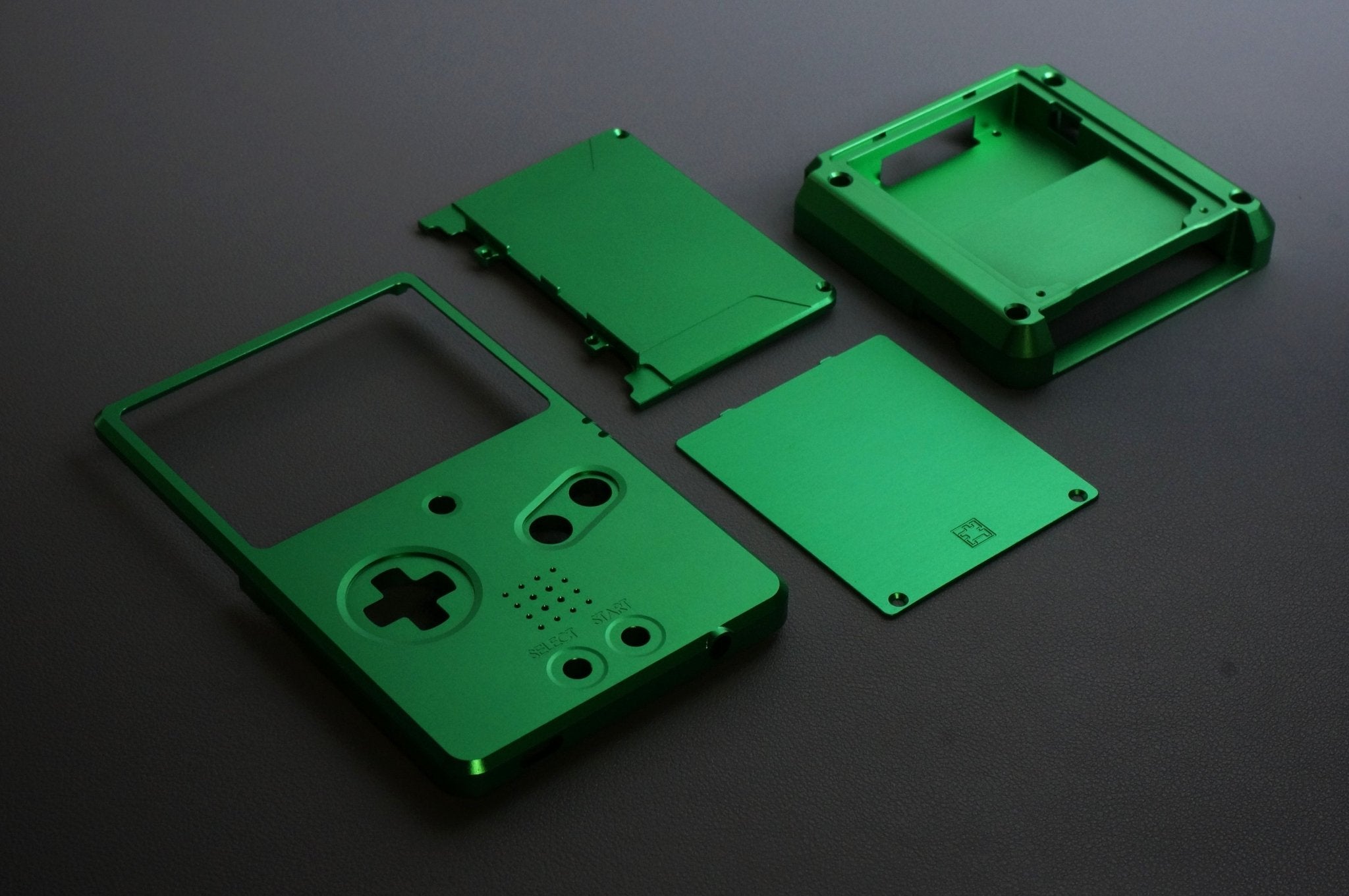

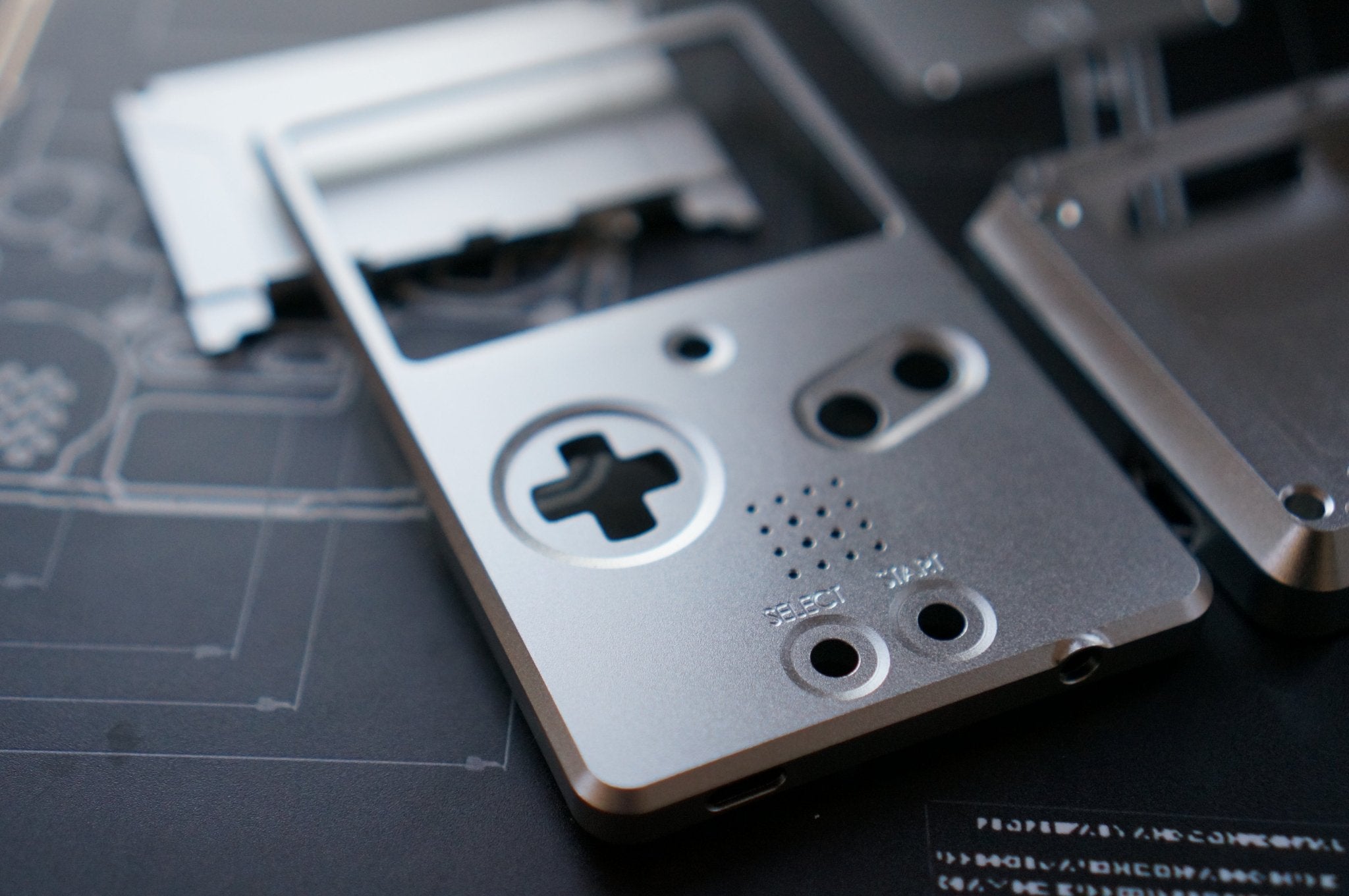

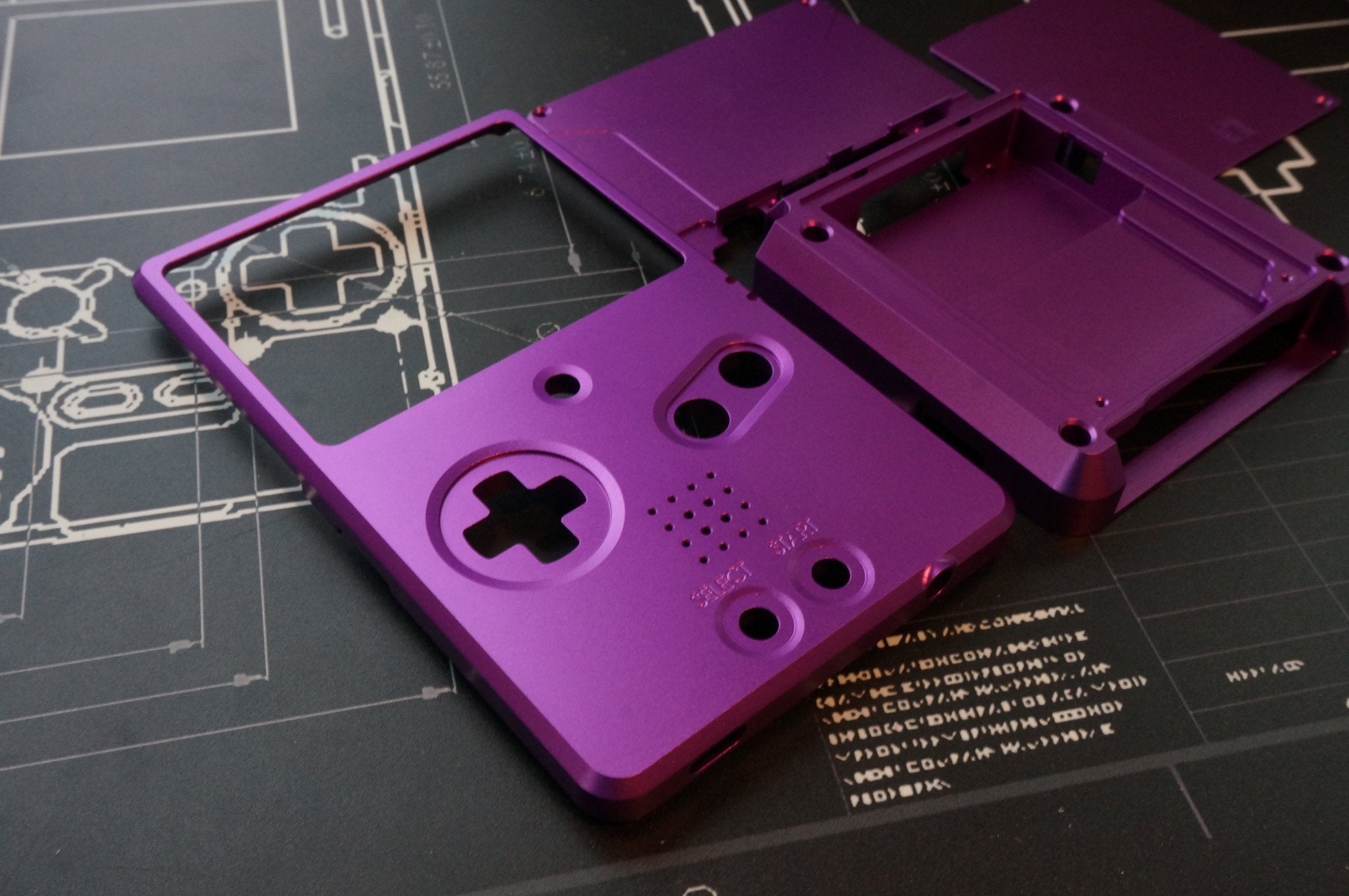

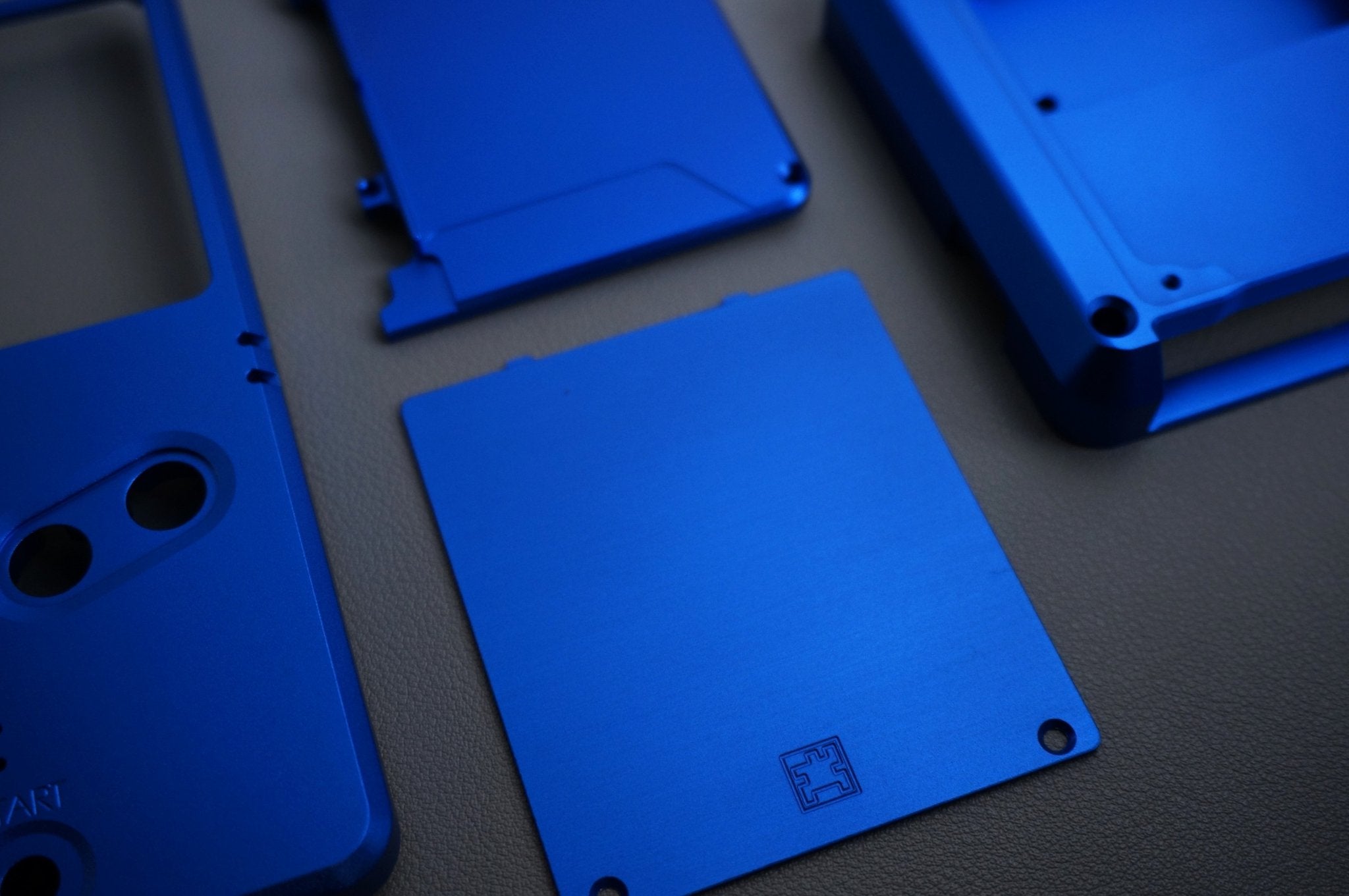

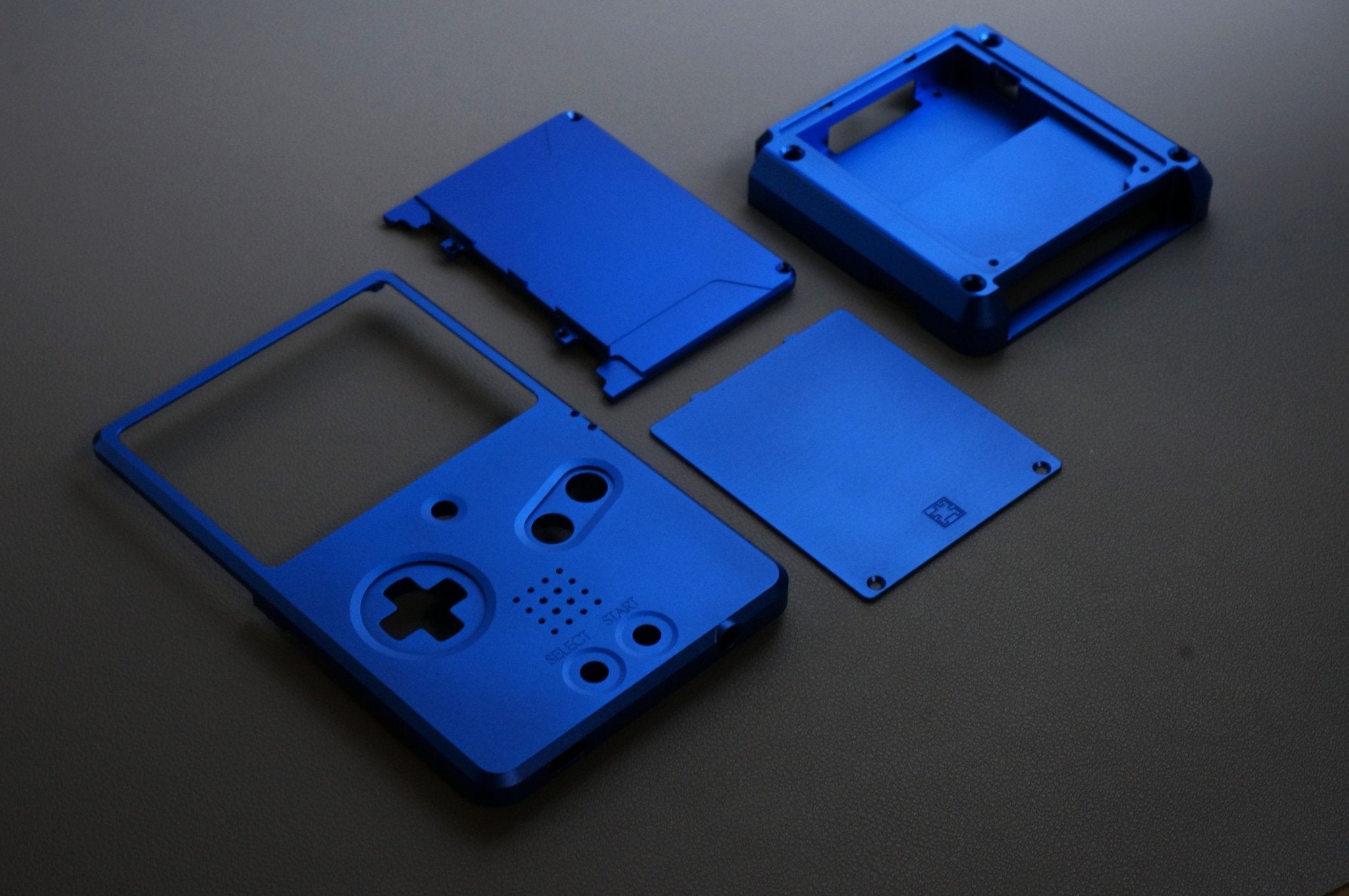

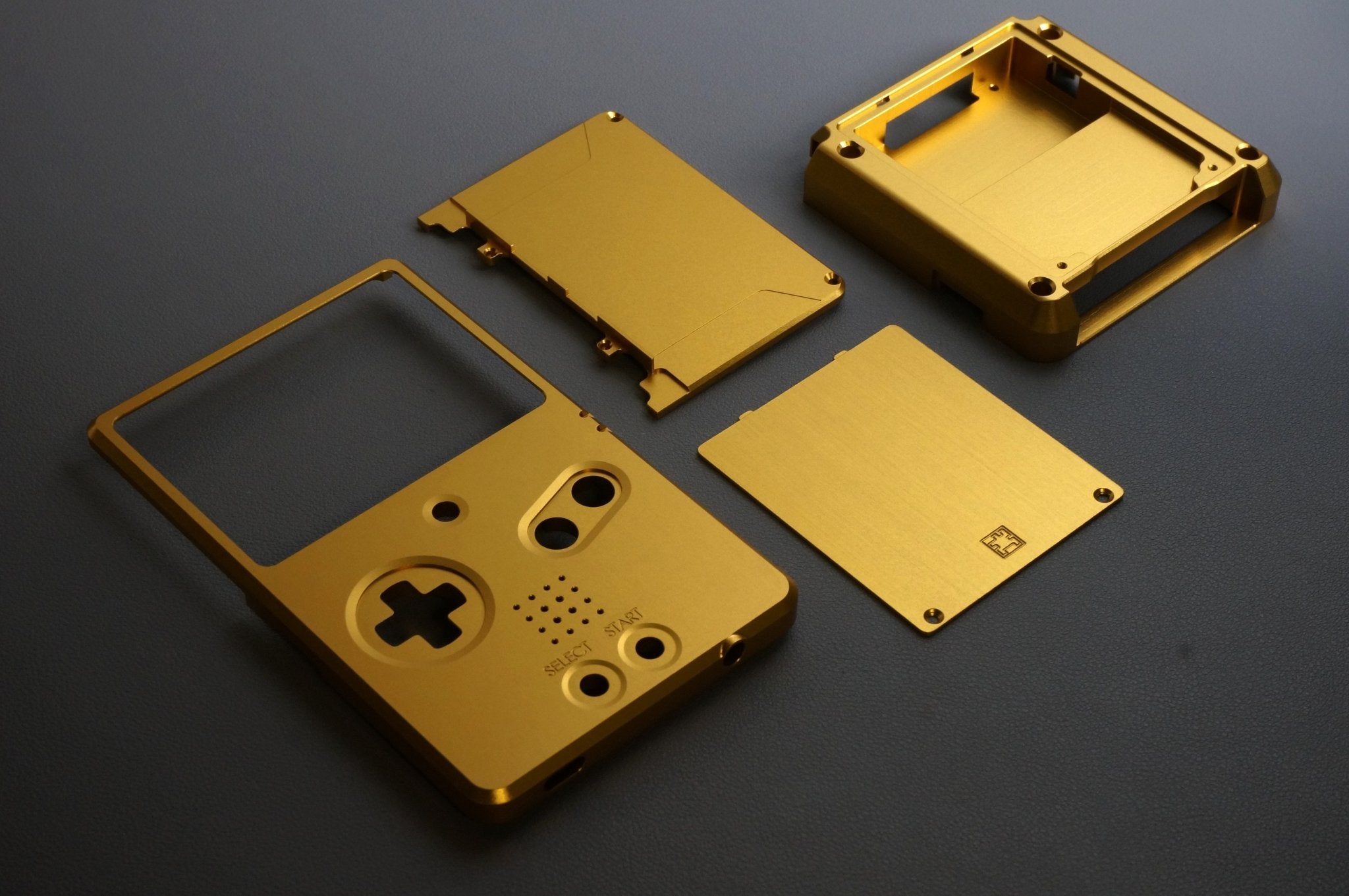

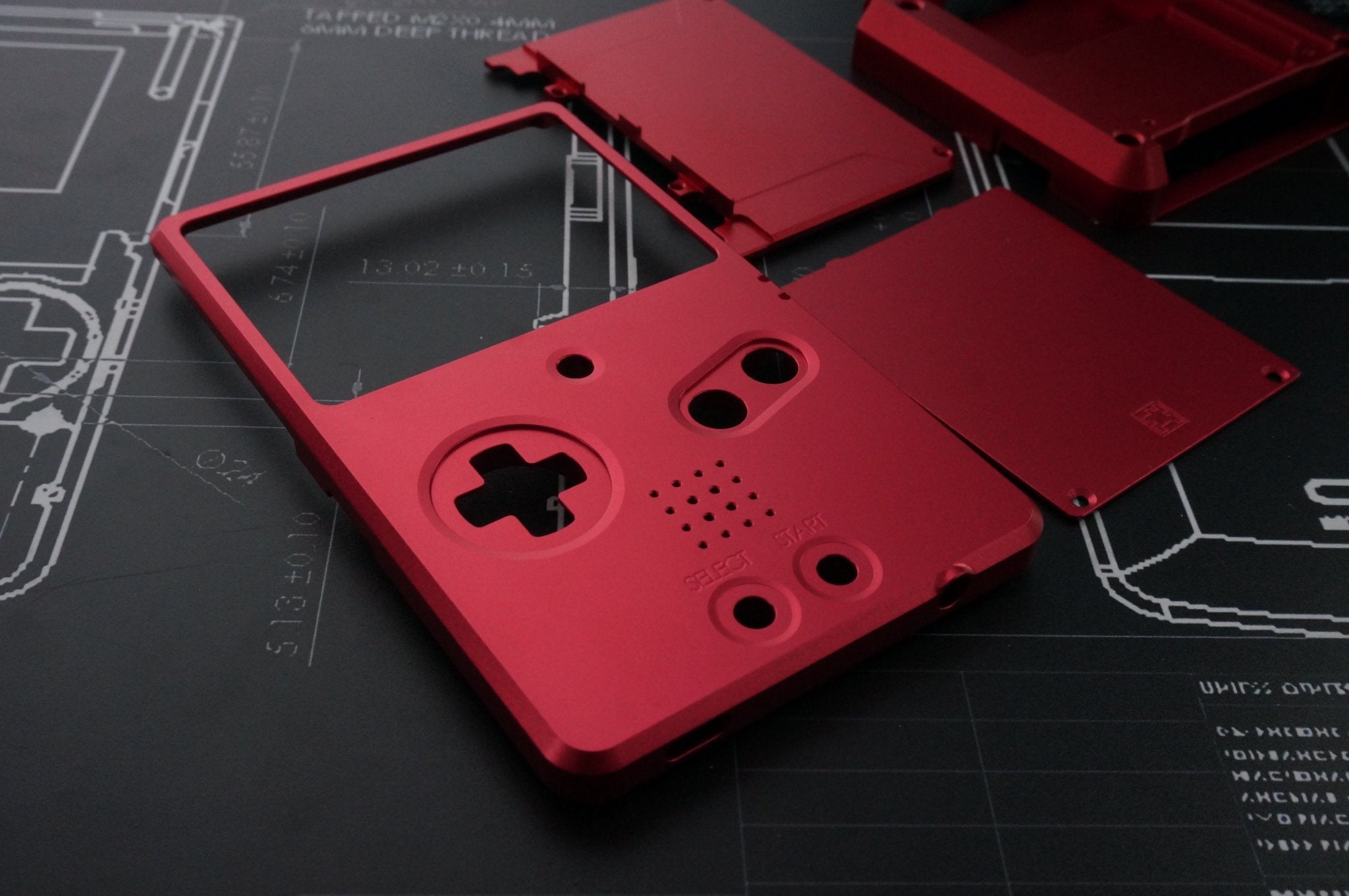

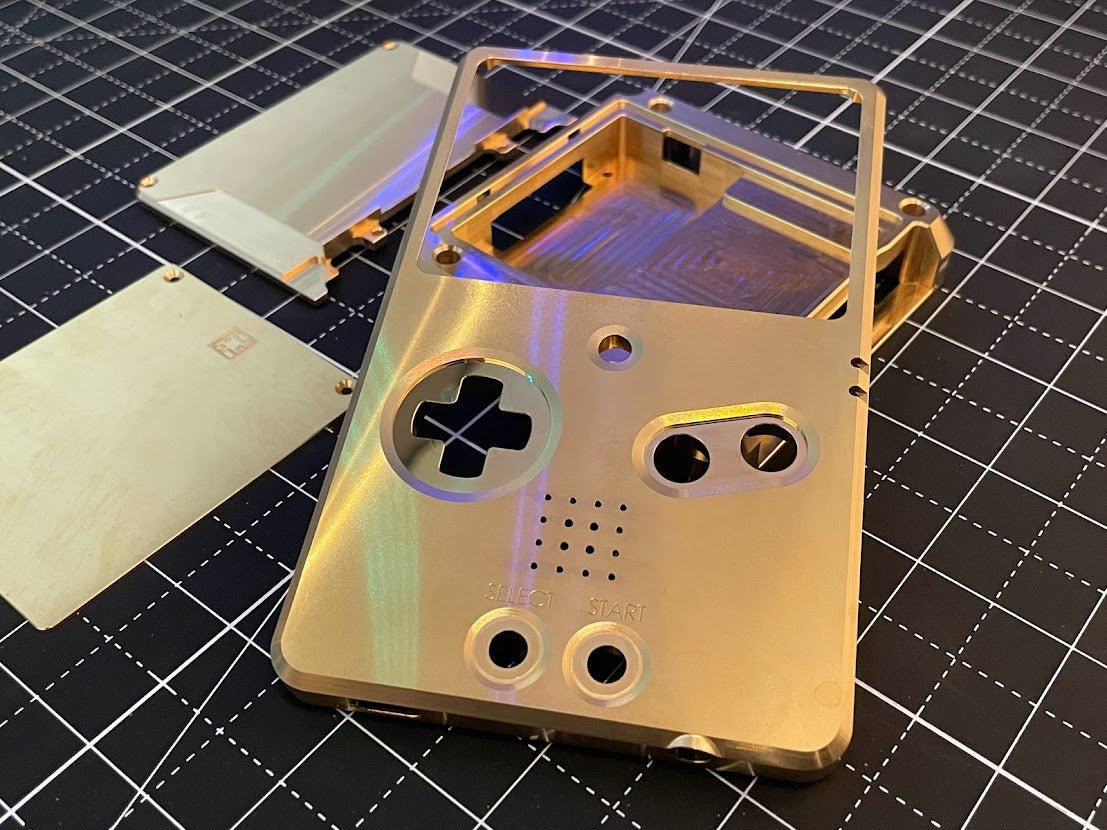

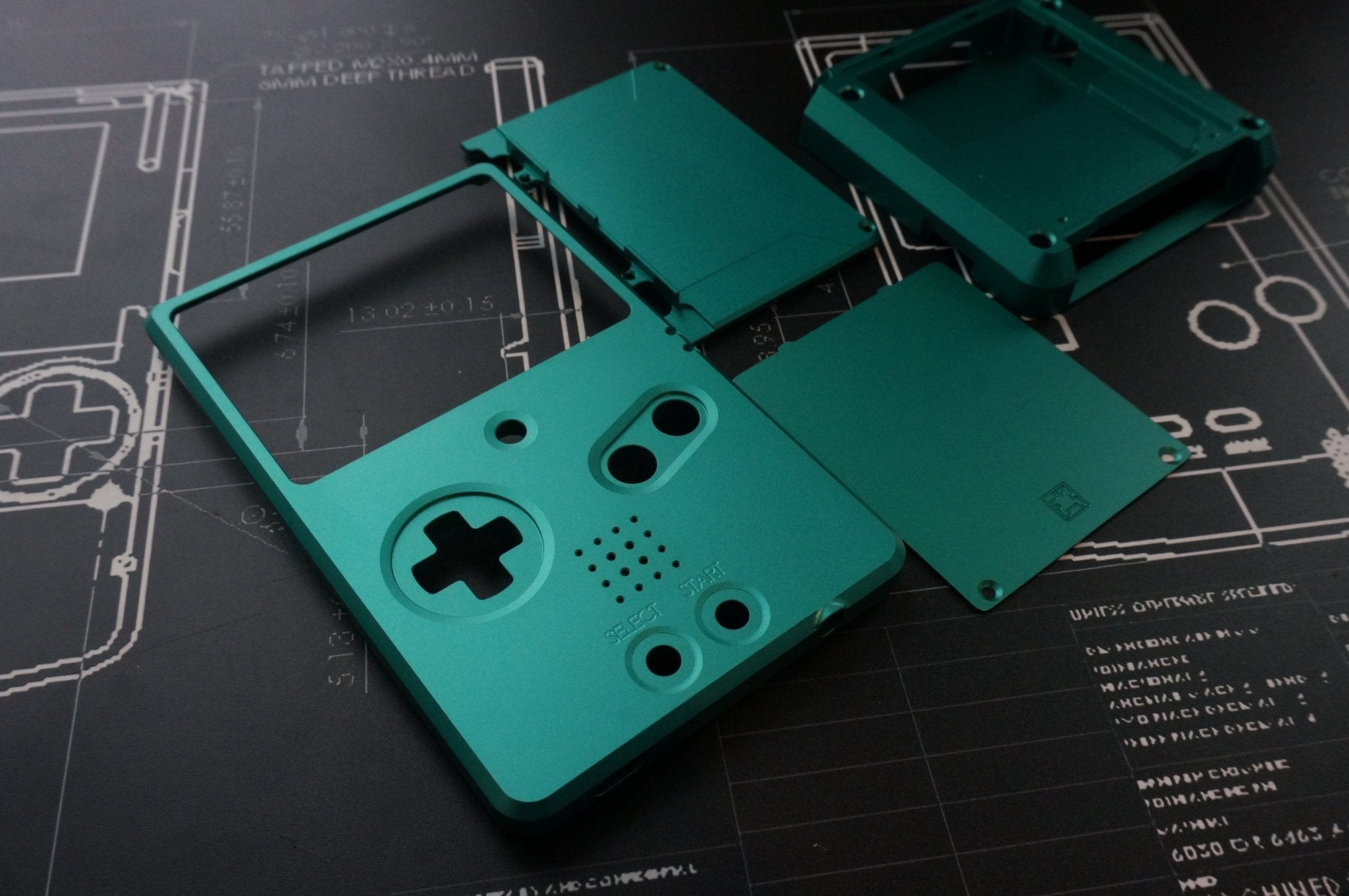

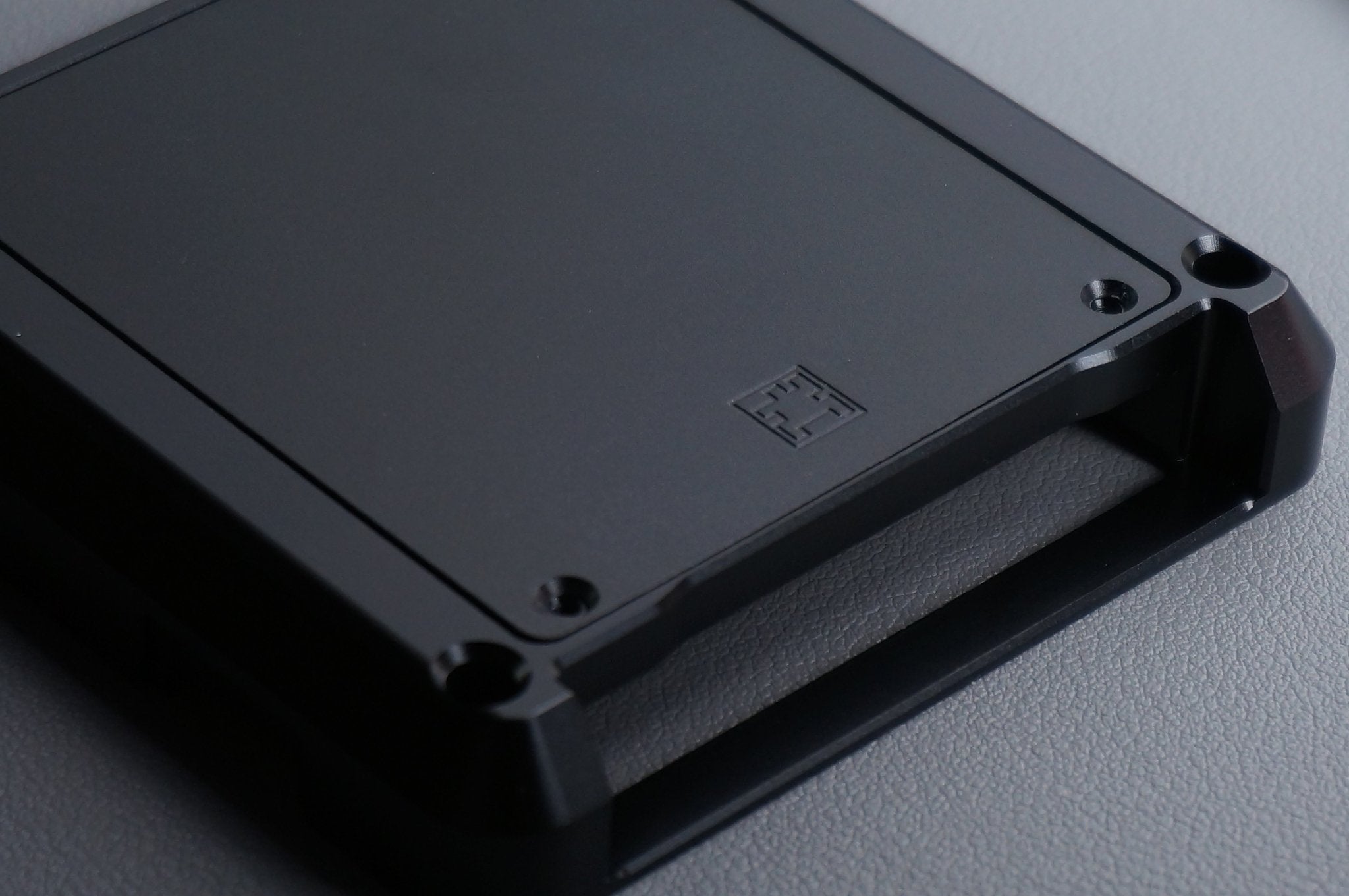

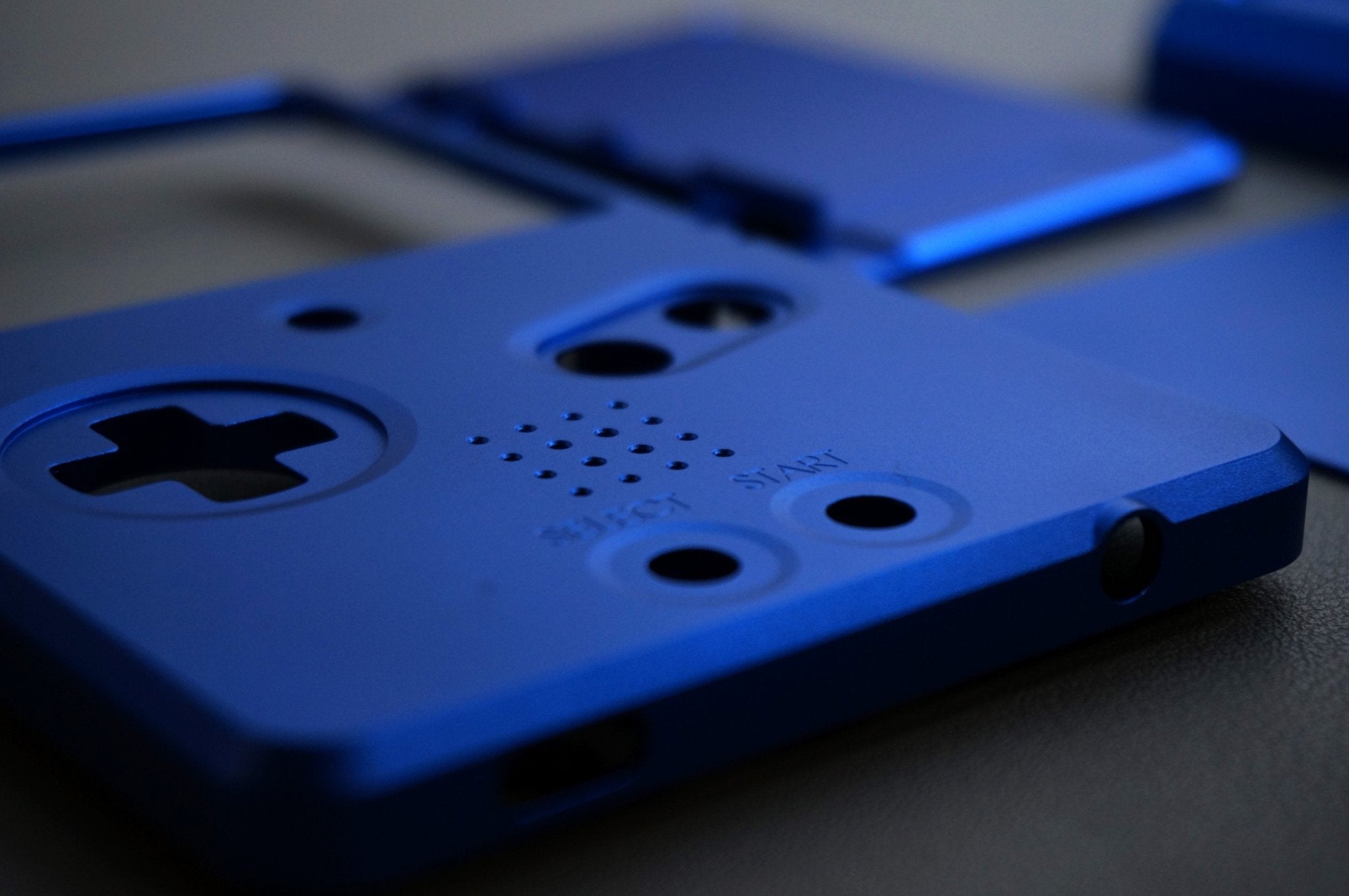

このセットは、Nintendo Game Boy Advance SP を Boxy Pixel アルミニウム デザインで再現します。この第 2 世代のハウジングは、フロント ハウジング、LCD リア ハウジング、メイン リア ハウジング、バッテリー リア パネル、留め具の 4 つの部品で構成されています。
- 背面のLボタンとRボタンは背面の同じ位置にあります。 L ボタンと R ボタンは正確で移動距離が短く、フロント ボタン (別売り) は純正のボタンよりも高くなっています。
- 中古の SP、アップグレードされた IPS スクリーン、および当社のボタンを使用すれば、はんだ付けをせずに部品をドロップインできます。機能を追加したい場合は、そのための機能が組み込まれています。
- Type C 充電ボードやヘッドフォン ジャックを追加するためのスペースがあります。使用しないことを選択した場合は、底部の穴を埋めるための 3D プリントされたプラグをご用意しています。
- 必要に応じて、より大きなオプションのバッテリーを収納できるスペースがあります。より大きな 1700 mAh バッテリーをご用意しています。
- オリジナルよりも奥行きが深くなり、より快適な演奏が可能になりました。
- 明るさボタンは、必要に応じて明るさ制御ワイヤーをはんだ付けできるように設計されています。

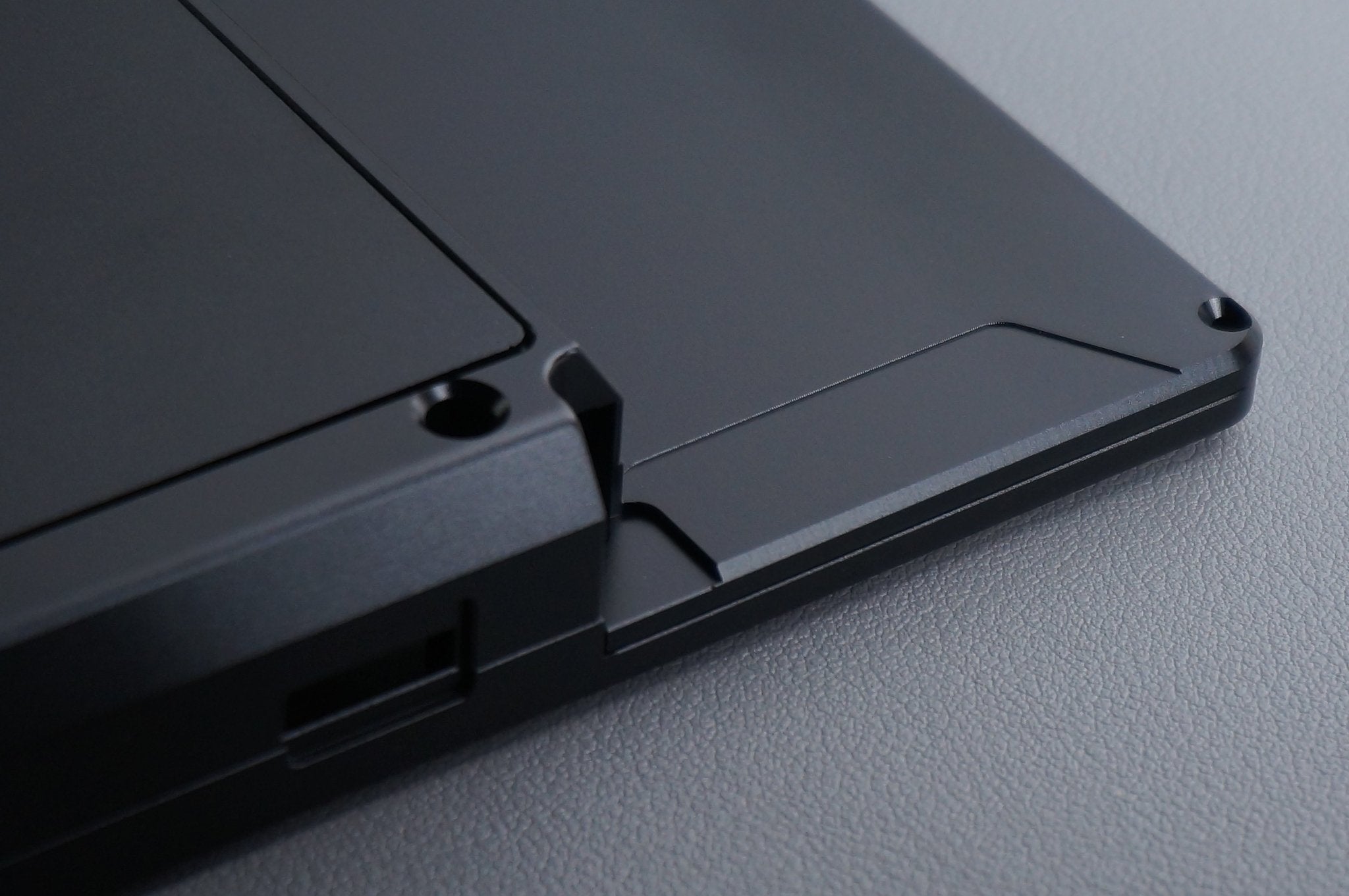

- 後部リンク ポートと電源ポートには引き続きアクセスできますが、一部の大きな取り付けモジュールは適合しません。
- 高さ = 133mm、幅 = 82mm、奥行き = 22.9m
- 組み立てられたアルミニウムの重量 = 7.8 オンス (改造に応じて)
- 付属ファスナーサイズ：M1.7x 3mm、長さ4mm、マイナス
必要な基本部品:
オリジナルの任天堂ゲームボーイアドバンス SP (任意のバージョン)
プラスチックの電源スイッチとボリュームスライダーはプラスチック
ワイヤー (28-30 awg を推奨)。ヘッドフォンの信号線には非常に細い線を使用できます。
Unhinged 製品をすべて表示するには
よくある質問
1. これらの新しいパーツはヒンジなしのバージョン 1 に適合しますか?
フラットなバッテリーパネルを除いて、いいえ。
2. 純正のシリコンを使用しますか? 純正の L ボタンと R ボタンなどを使用しますか?
回答:組み立てプロセスを作成しました 画像付きなので、組み立てに何が必要かを確認し、カスタム ビルドに必要な部品をより深く理解できます。
3. OEM スクリーンを使用できますか?
はい！純正スクリーンは非常にタイトにフィットしているため、スクリーン裏側のフォームを慎重に取り除きます。
完全に機能するカスタム ユニットを構築してもらいたい場合は、当社のリストにあるビルダーのいずれかに連絡してください: ビルダー リスト
Notes
These parts are not mass produced and we use multiple machine shops, so surface finish, texture, and color may vary between batches. Colors may also look different depending on your screen, the lighting, and variations in anodizing.
Please be sure to review our refund policy for cancelled and returned orders.
We cannot change the value of the shipment and sadly we do not have control over your particular country's fee/tariffs/taxes.
Brass parts come as machined and may show oxidation/discolor (due to being exposed to air) and some small machining or small scratches may be present. Assume you will need to do your final surface finishing using a flexible 3M sanding pad. (The 3M 7448 usually works well). After polishing, clean and apply clearcoat, poly, or other coating to maintain the shine. Note Brass is also very dense (heavy) and conductive. Consider in some applications, these attributes may have adverse effects. (ex. The SP hinges will not support the screen as well). If used with electronics, it is advisable to use kapton tape, insulating paint, (nail polish may work) to prevent electrical shorts.
