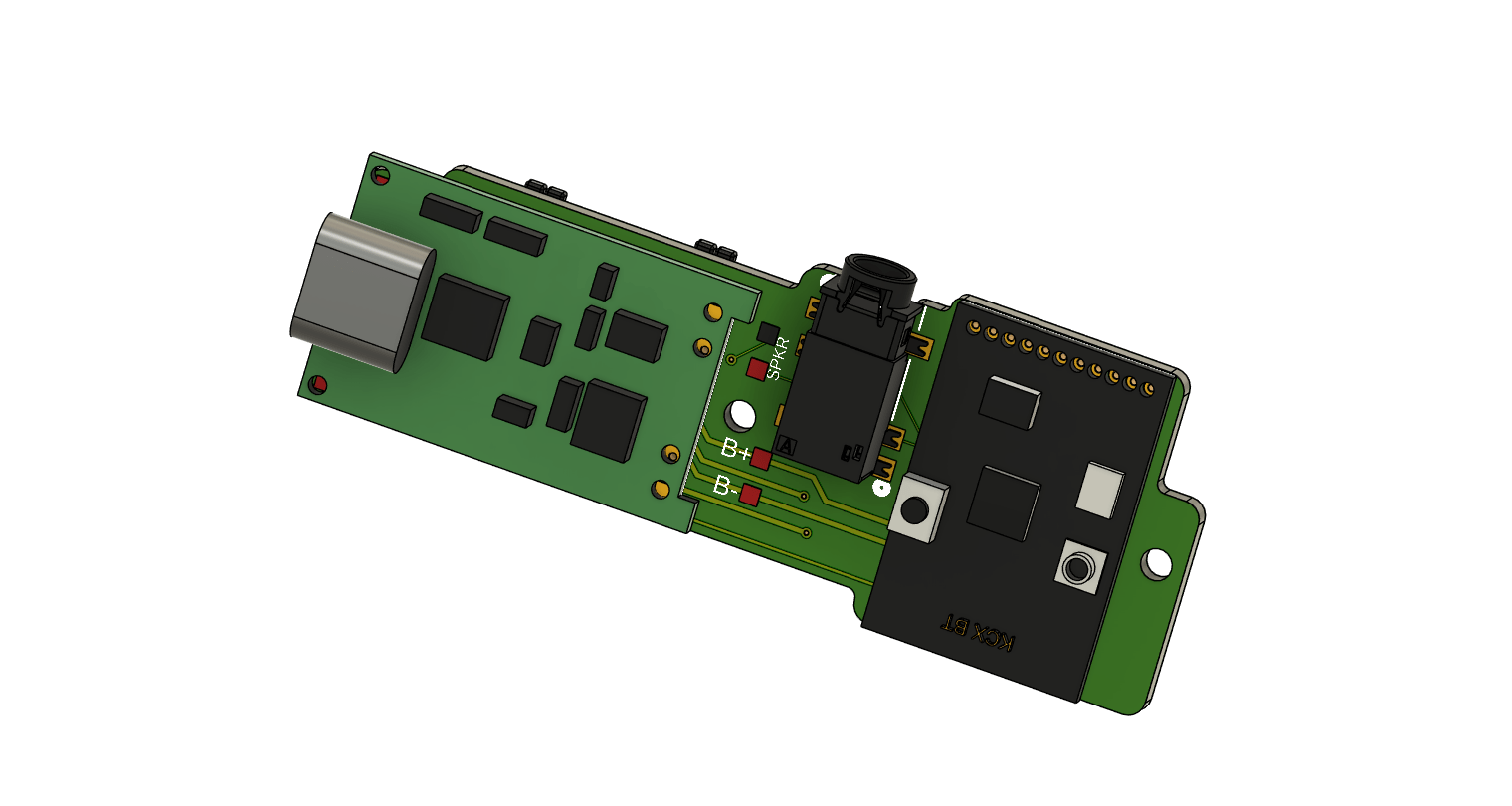

iPod Custom PCB - Bluetooth and Type-C charge: Generation 5, 6, 7
税抜き価格 配送料は購入手続き時に計算されます。
Please see our most recent MKII : https://www.boxypixel.com/collections/mkii-ipod-classic-5th-gen-7th-gen-mkiikits
Only compatible with our iPod MKI housings prior to the MKII.
This will come with the type-C board and bluetooth board unassembled. You will need to solder.
Features
- Type-C charging and Bluetooth board come soldered on, ready for install
-
There are connection points (soldering required) for adding
- Taptic engine
- Magsafe charging coil
- 3.5mm headphone jack

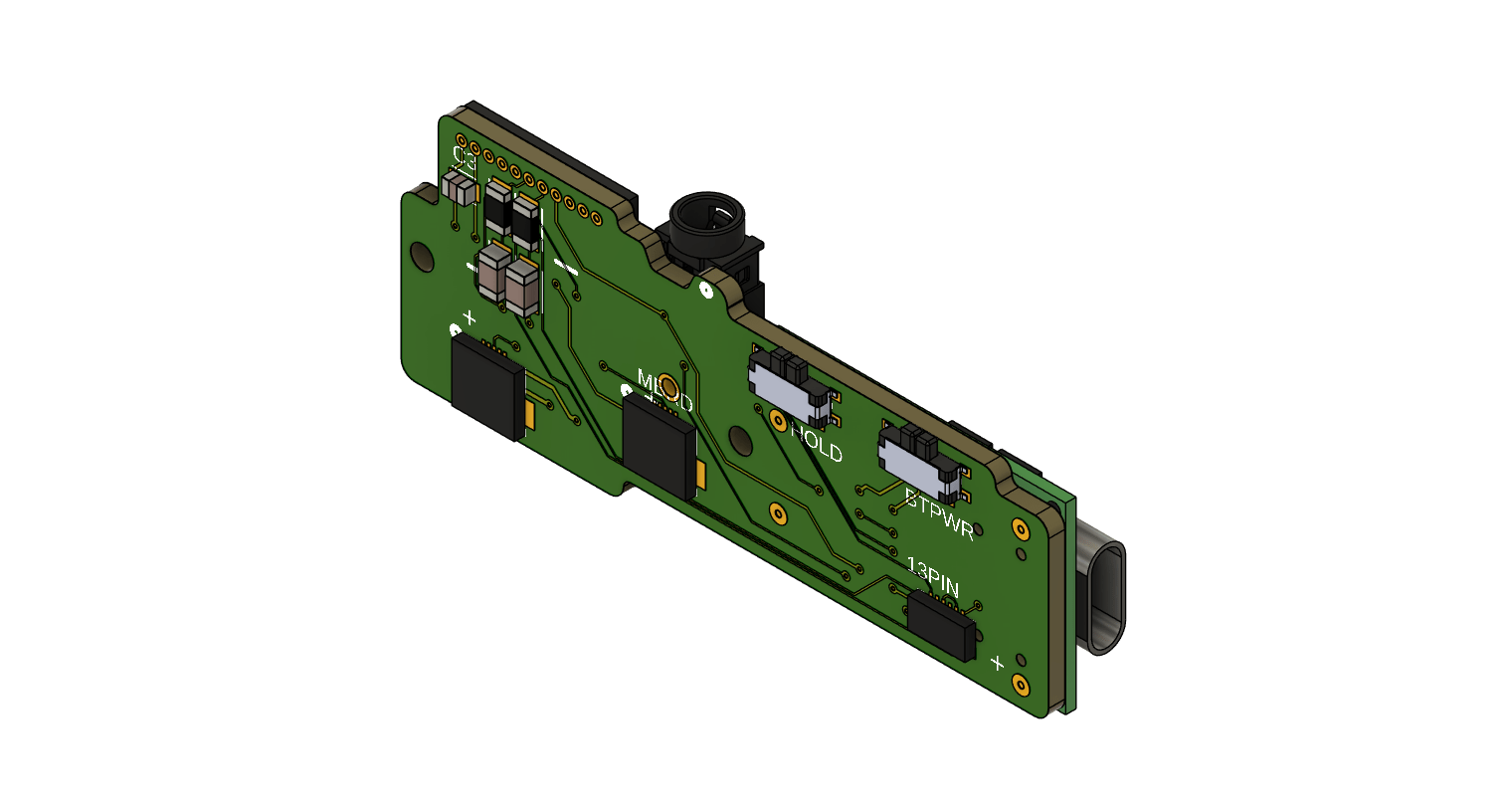

- Two switches on top, one for turning Bluetooth on/off, and another for the hold switch
- 1 button on the rear for syncing the Bluetooth board
- Bluetooth uses the KCX BT emitter board (supports sbc and aac). This will not connect to newer ipods and has limitations on what it can connect to.
Includes
-
1x Front housing
- 1x Rear housing
- 1x Retainer
- 1x Bluetooth Board
- 1X Type-C charge board
Warnings
- This electronics board will not fit OEM housings
- This will come with the type-C board and bluetooth board unassembled.
- The bluetooth board will not connect with all headphones. I have begun to compile a list of headphones that work, see here.
Notes
See our assembly guide page for installation instructions
These parts are not mass produced and we use multiple machine shops, so surface finish, texture, and color may vary between batches. Colors may also look different depending on your screen, the lighting, and variations in anodizing.
Please be sure to review our refund policy for cancelled and returned orders.
We cannot change the value of the shipment and sadly we do not have control over your particular country's fee/tariffs/taxes.
Brass parts come as machined and may show oxidation/discolor (due to being exposed to air) and some small machining or small scratches may be present. Assume you will need to do your final surface finishing using a flexible 3M sanding pad. (The 3M 7448 usually works well). After polishing, clean and apply clearcoat, poly, or other coating to maintain the shine. Note Brass is also very dense (heavy) and conductive. Consider in some applications, these attributes may have adverse effects. (ex. The SP hinges will not support the screen as well). If used with electronics, it is advisable to use kapton tape, insulating paint, (nail polish may work) to prevent electrical shorts.
