iPod Classic Fat Housing Kit - 5th, 6th, 7th Generation
This is a pre-order item. Pre-order will end July 9th. Our estimate for completion will be Mid September. We will begin sending parts shortly thereafter.

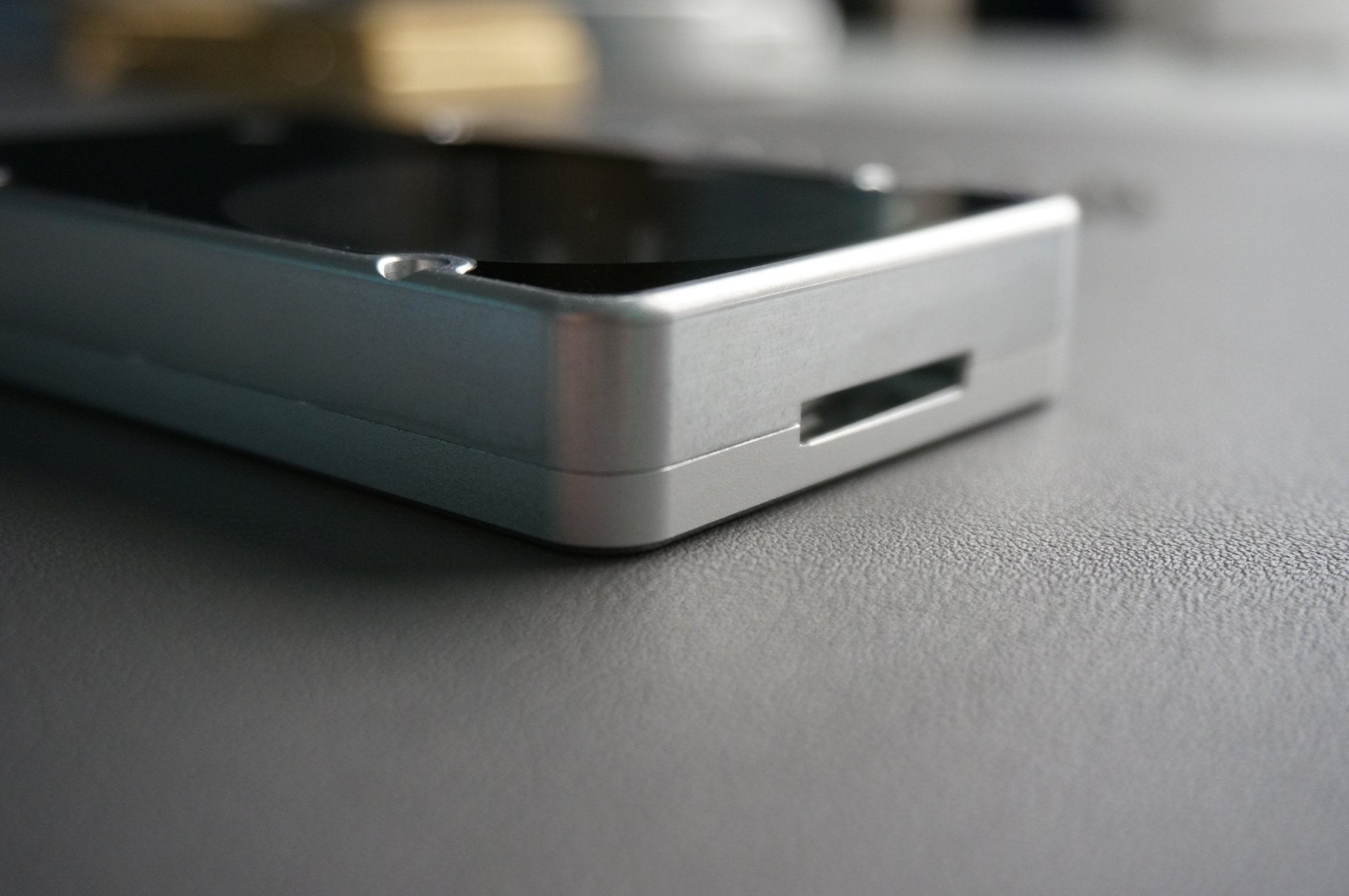

This custom-made metal housing kit replaces your old iPod housings from the 5th to 7th generation. It gives your iPod new life by showcasing the original electronics which features USB-C charging and Bluetooth so you can charge it and connect wirelessly to bluetooth speakers.
Our metal housings are made for modding and serviceability in mind, with plenty of space in our housings and disassembles easily with 4 included fasteners.
Features
- Designed around our custom PCB that features Type-C charging and blue tooth
- Includes our custom front and rear glass inlays with 3M adhesive pre-applied
- Front and rear metal housings attach together with 4 included fasteners, so assembly/disassembly is simple.
- Our electronics have solder points to add a taptic engine modification or small speaker for an audible click (not included)
- Room for wireless charge coil (not included)
- Added clearance for battery connector - it's easy to break these, so we made it more accessible
-
Our extra thick design fits our PCB and:
- iflash quad with our 380 mah battery (iflash sold separately)
- iflash solo with our 3800 battery (iflash sold separately)
-
OEM slim hard drive with 3800mAh can barely fit if all foam is removed.

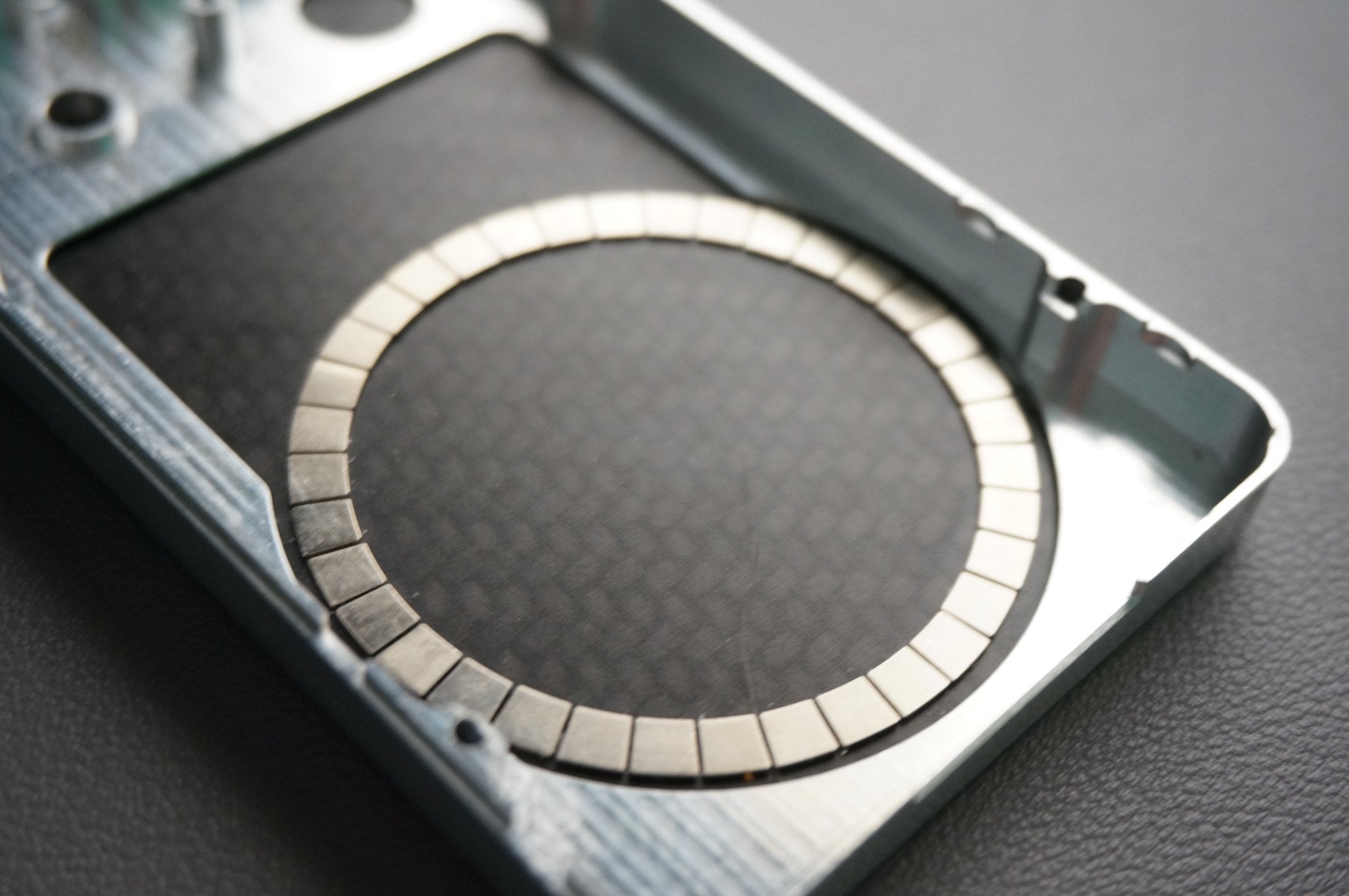

- Charge coil not recommended in this configuration: We have tested the OEM HDD stackup with a Magsafe magnet installed over a period of 72 hours with no loss of data, however, we cannot recommend this configuration
- Dimensions: 103.5mm x 63.8mm x 17mm
Includes
-

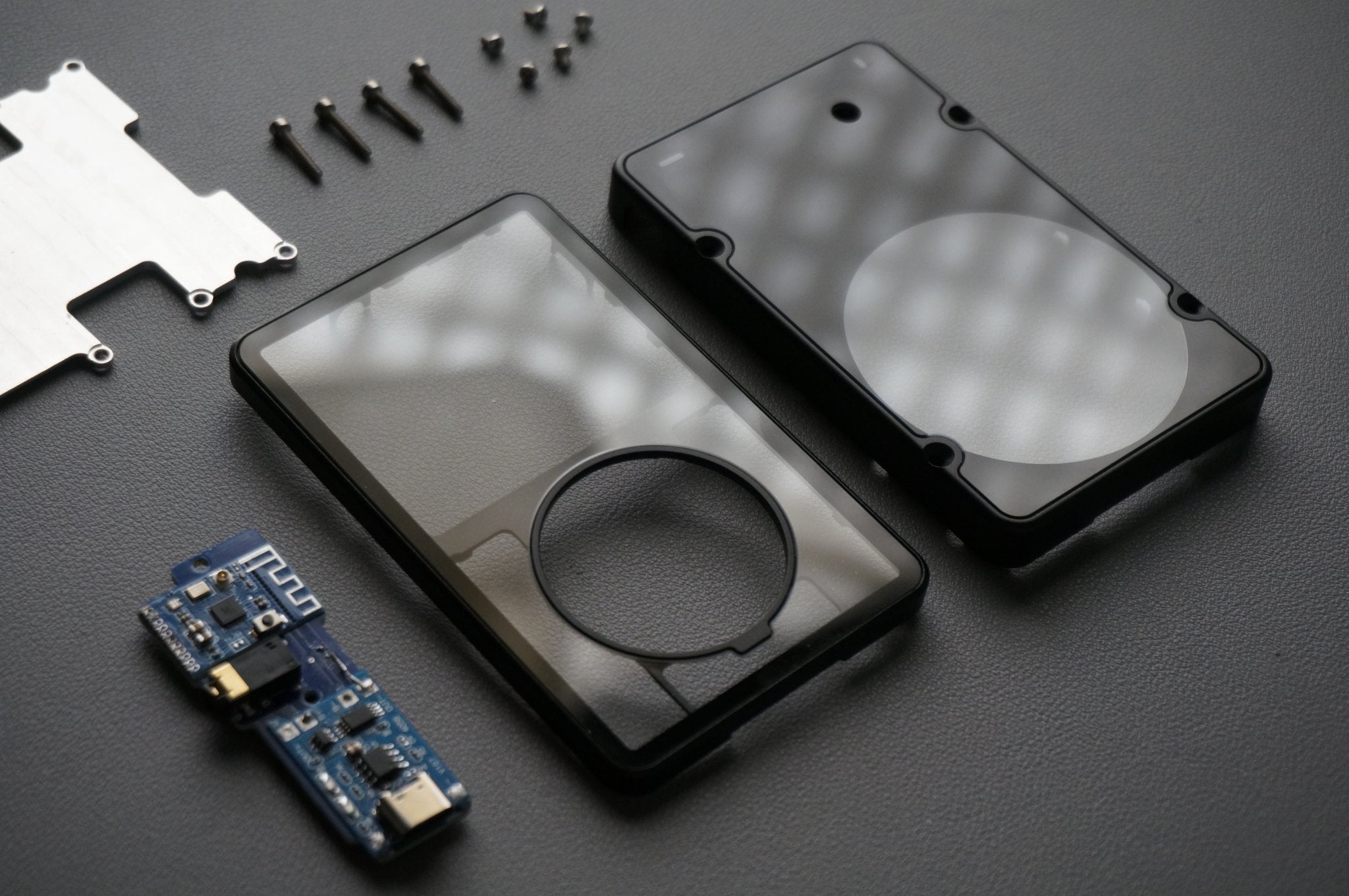

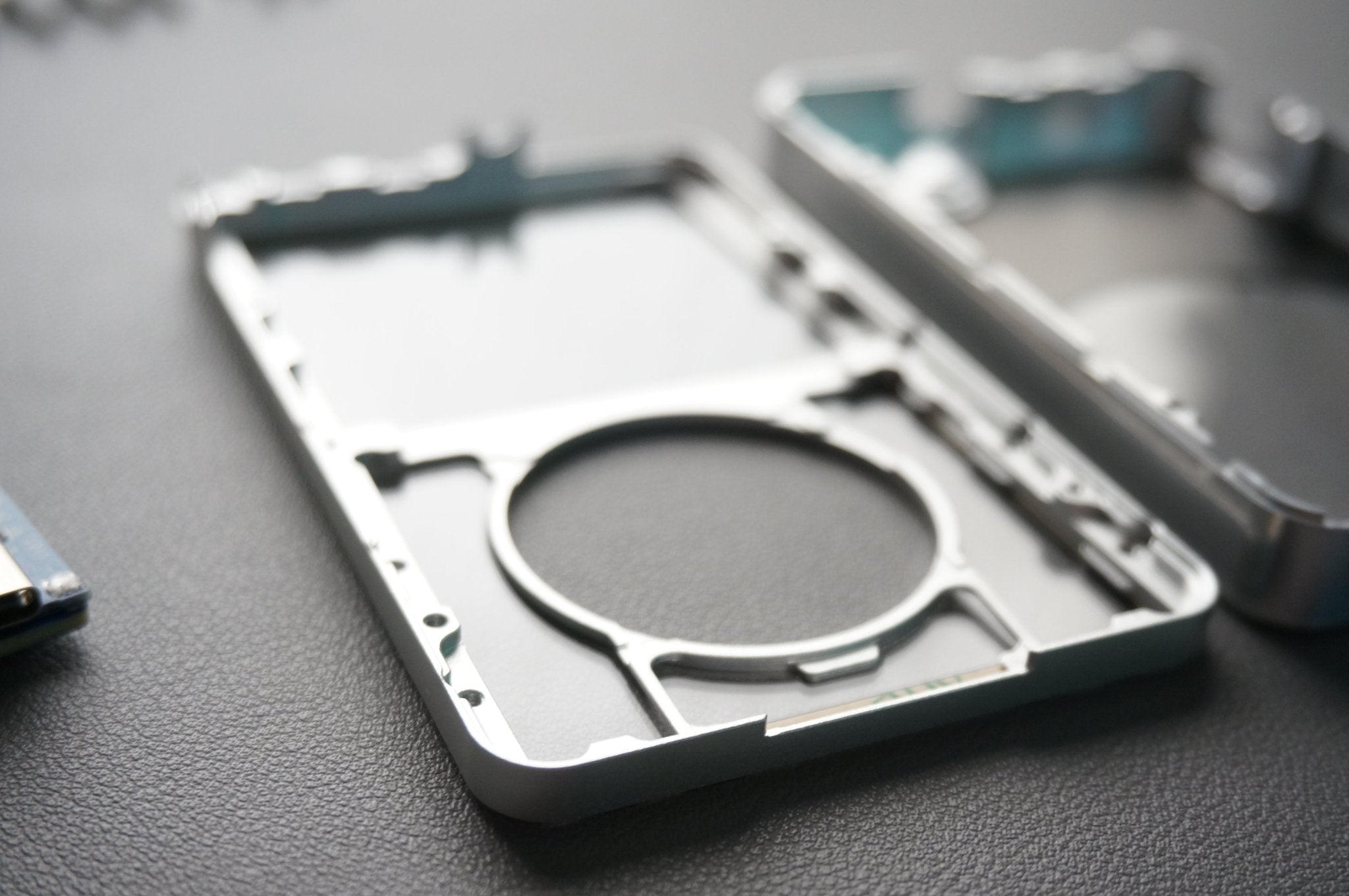

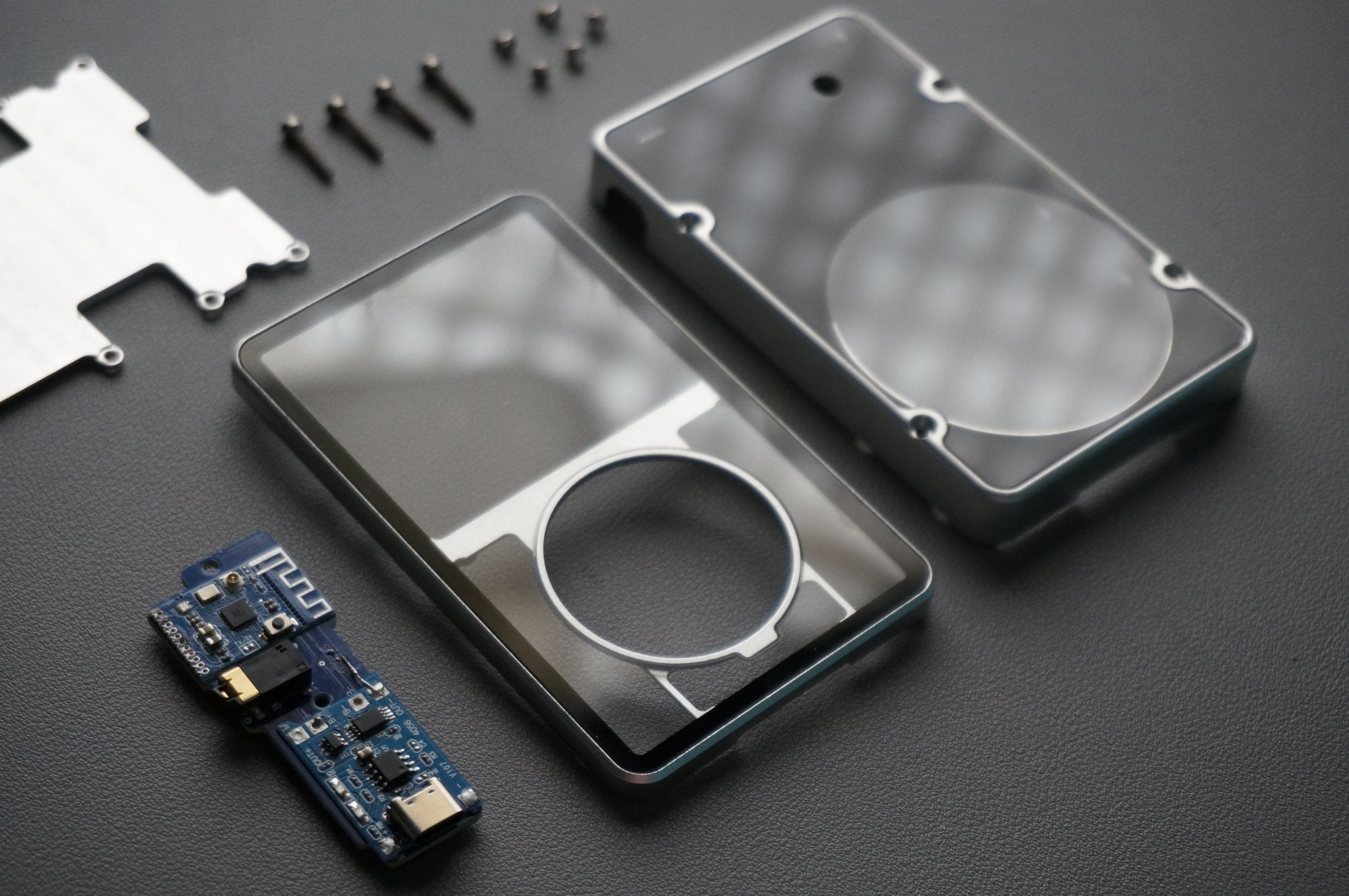

1x Front housing
- 1x Rear housing
- 1x Retainer - This holds the ipod electronics

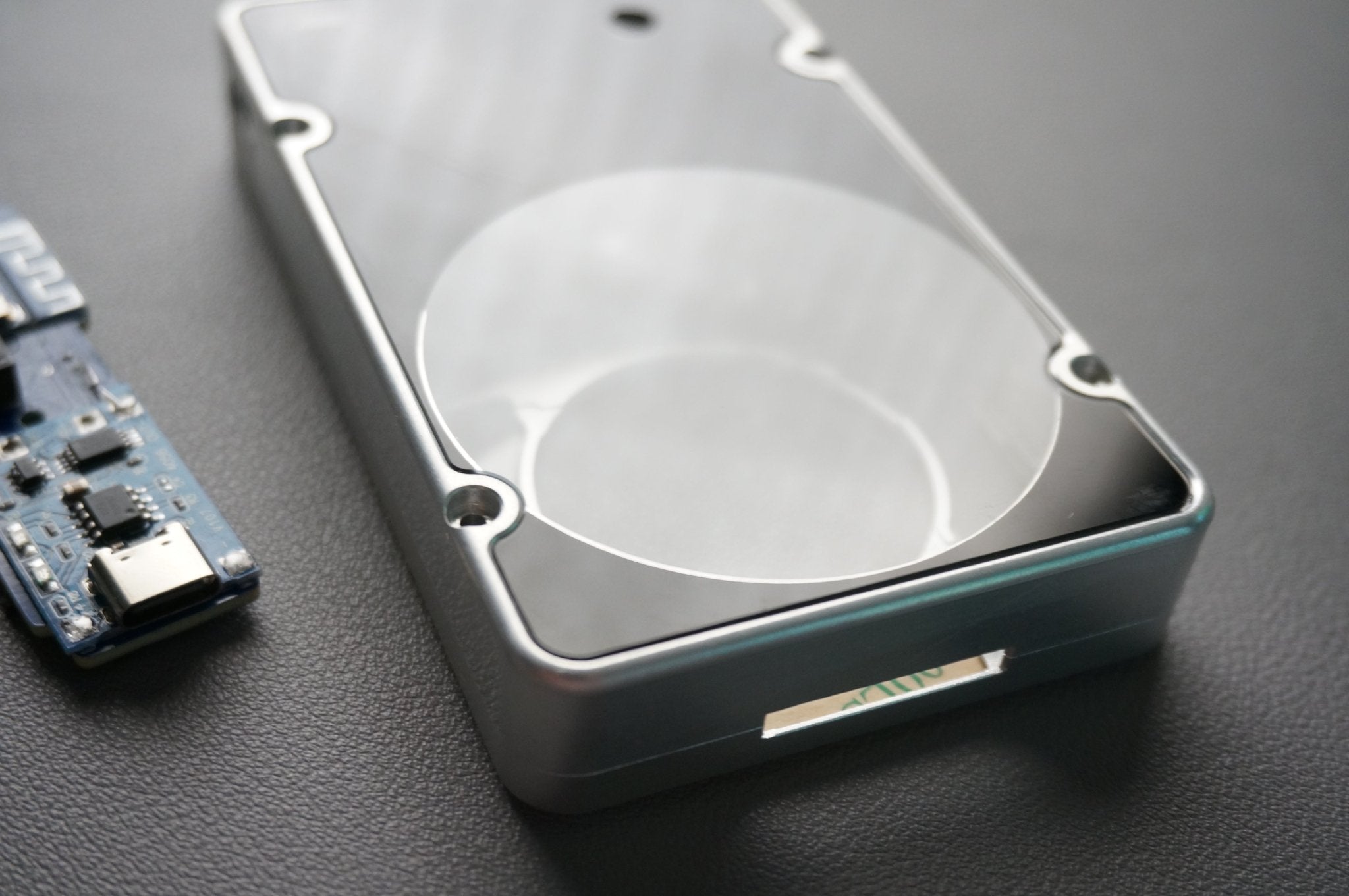

- 1 x Custom front glass
- 1x Custom rear glass
- 4x Main body fasteners
- 1x Package of short fasteners for inside components
- Custom Electronics board: Type C (charging only), 3.5mm headphone jack and Bluetooth pre-installed installed
- Power Flex cable to connect the custom electronics board to the ipod power connector
- Audio Flex cable to connect the our custom electronics to the ipod
Not Included
- Boxy Pixel ipod Button kit (Required!)
- 3800mah Battery (Required!) USA shipping only. Search 405570 3800mah Battery if you are outside the USA. This battery is roughly 4mm thickx55mmx70mm. If you find another battery that is smaller in size, it will fit. Otherwise, assume that it will not.
- Optional Taptic module (vibration) or click speaker
- Hard drive: We recommend swapping your HDD for the iflash quad or iflash solo. A slim hard drive can fit, however it will be very tight.
Notes
-
Tools: You will need a small phillips screw driver and hex drive for assembly
- Image of brass version is out of date. It will have the same shape as the black and silver versions! I used an older prototype so you could see the color
- If using Generation 6 or 7 electronics, the click wheel will sit slightly inset from the front face of the glass
- If using a "slim" apple hard drive, it will be a very tight fit. We suggest removing foam from the HDD and you may need to carefully un-tape the battery to remove the bump.
- Type-C is for charge only, not data, no fast charging (Type A to type C cable). The 30 pin connector remains unchanged
- Important! We do not have a large enough sample size to know the tolerance of the OEM components such as button heights, etc. Although we think we settled on good dimensions, there is a risk some adjustments may be needed. Be sure to reach out to us so we can help.
Notes
These parts are not mass produced and we use multiple machine shops, so surface finish, texture, and color may vary between batches. Colors may also look different depending on your screen, the lighting, and variations in anodizing.
Please be sure to review our refund policy for cancelled and returned orders.
We cannot change the value of the shipment and sadly we do not have control over your particular country's fee/tariffs/taxes.
Brass parts come as machined and may show oxidation/discolor (due to being exposed to air) and some small machining or small scratches may be present. Assume you will need to do your final surface finishing using a flexible 3M sanding pad. (The 3M 7448 usually works well). After polishing, clean and apply clearcoat, poly, or other coating to maintain the shine. Note Brass is also very dense (heavy) and conductive. Consider in some applications, these attributes may have adverse effects. (ex. The SP hinges will not support the screen as well). If used with electronics, it is advisable to use kapton tape, insulating paint, (nail polish may work) to prevent electrical shorts.
